Sitecore XP 9.0.1 and SXA 1.6.0 Demo – Habitat Home – Step by step Setup Guide

Recently, I’ve had a chance to play around with the installation of a new Sitecore demo – Habitat Home. Personally, it’s an interesting experience for me so I want to write it down for myself and for the Sitecore community. I do hope that it’s helpful for your own play.

Thanks Jean-François Larente for his prompt support so that I was able to overcome the problems quickly if any during the installation.

Update (01-Aug-2018): for Sitecore XP 9.0.2 and SXA 1.7.1 demo, please navigate to this one

Setup Preresiquites

Step-by-step Guide

  1. install the ones below if not yet 😀
  2. ensure that you create an HTTPS binding with appropriate self-signed certificate
    • Note 1: you can try creating the self-signed certificate and assign it to your site if not yet by executing the following PowerShell script
    • launch PowerShell as an administrator
    • Add-WebFeatureSSL -HostName “habitathome.local” -RootDnsName “DO_NOT_TRUST_SitecoreDemo”

    • Note 2: if you see something like New-SelfSignedCertificate : CertEnroll::CX509Enrollment::_CreateRequest: The time period is invalid. 0x80630705, you will have to use the new root certificate (Ex: DO_NOT_TRUST_NewSitecoreDemo)
    • This slideshow requires JavaScript.

    • Note 3: if you see something like The term ‘Add-WebFeatureSSL’ is not recognized as the name of a cmdlet, function, script file, or operable program you will have to execute Install-Module SitecoreFundamentals
  3. install all required Sitecore modules below via Installation Wizard
  4. download or clone the git repo from Habitat Home (version
  5. restore all Node.js modules
    • run command line as Administrator
    • change directory to Habitat Home directory
    • execute npm install
    • ghh_6
  6. Note: I don’t want to use the default settings so I need to adjust the appropriate values in the following files:
    • \gulp-config.js
      • ghh_3
    • \publishsettings.targets
      • ghh_4
    • \src\Project\Common\code\App_Config\Include\Project\z.Common.Website.DevSettings.config
      • ghh_5
  7. open \HabitatHome.sln with Visual Studio 2017
  8. deploy Sitecore.HabitatHome.Content
    • open Task Runner Explorer on View -> Other Window -> Task Runner Explorer
    • ghh_7
    • choose Solution ‘Habitat.Home’ from list, then click refresh button
    • from task list, double click on default task to run it
    • ghh_8
    • Note: for Visual Studio 2017 on your own machine, you might have to run gulp tasks via Command Prompt (run as Administrator)
  9. hopefully everything runs well and then you would see something like this
    • ghh_10
  10. open a browser and then navigate to https://habitathome.local, you would see the default page of Sitecore website. That’s because we don’t use the default host name so we need to correct it inside Sitecore

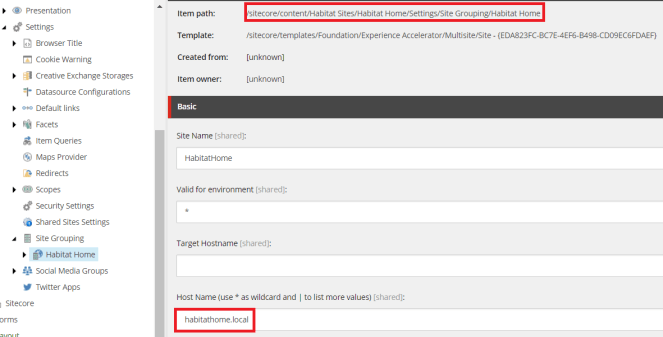

    • log into https://habitathome.local/sitecore
    • access /sitecore/content/Habitat Sites/Habitat Home/Settings/Site Grouping/Habitat Home
    • update Host Name to habitathome.local then save
    • ghh_9

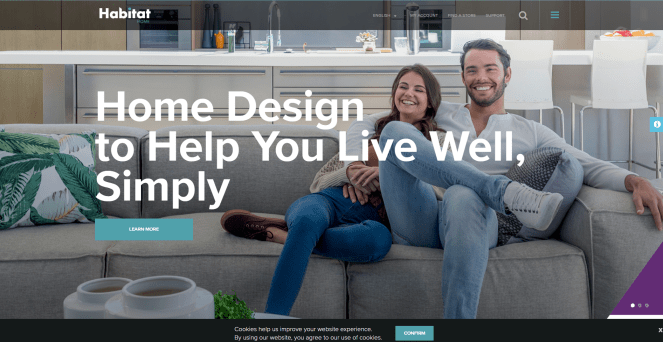

  11. refresh https://habitathome.local, you would see something like this
    • hh_13


Note: some known issues

  1. running Sync-Unicorn gulp task: The underlying connection was closed: Could not establish trust relationship for the SSL/TLS
    • hh_9
    • my suggestion: ensure that you create an HTTPS binding with appropriate self-signed certificate
  2. installing a required Sitecore module: The installation failed.
    • blr_5
    • my suggestion: ensure to follow the installation order strictly and then reinstall the failed one with Overwrite option


Got issues?

Please send your issues (with screenshots if possible) to so that I have a chance to understand your problem and be able to suggest the solution.

Happy Sitecore Demo Installation!
