This month, I’ve had a chance to play around with AWStats and Sitecore. The main purpose is to provide website statistics of the past days / weeks / years with a friendly user interface to the site admin / web master.

How about Sitecore Analytics? Sitecore License has had NO xDB enabled so they’ve not used Sitecore Analytics since day 1. Of course, the good replacement – Google Analytics – just has been integrated recently.

Assumptions

• single Sitecore instance
• is hosted on IIS / Windows web server
• open source and can run on Windows
• depends on IIS log files

Step by step set-up guide of AWStats

1. install Perl if NOT YET
   • note: personally, I wanted to eat Strawberry
2. navigate to AWStats Download and then download AWStats version 7.7 (the latest stable version at this moment)
3. unzip and then copy / paste wwwroot folder to our Sitecore website folder + rename it to awstats for a better practice
   •

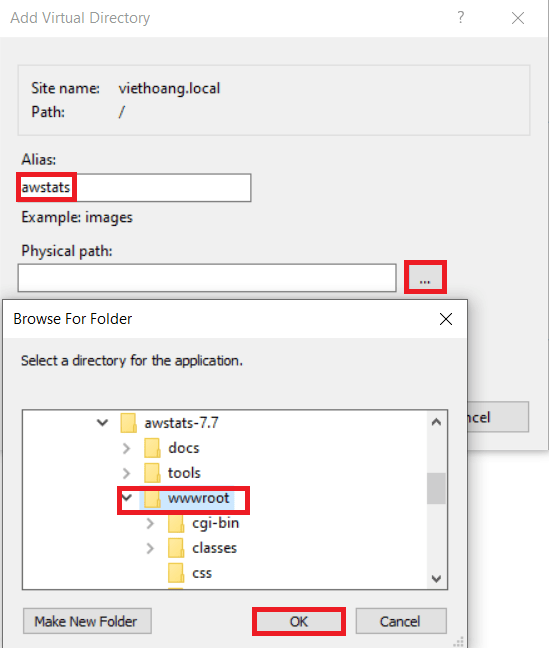

   • Note: we can add a virtual directory to IIS site and name it awstats instead of copying wwwroot folder to our Sitecore website folder
   •
4. let’s configure AWStats for Microsoft’s IIS server by following this instruction
   • access [Sitecore website folder]\awstats\cgi-bin
   • create a configuration file by clone awstats.model.conf and rename it to awstats.viethoang.conf
   • next step is to edit awstats.viethoang.conf to match our specific environment

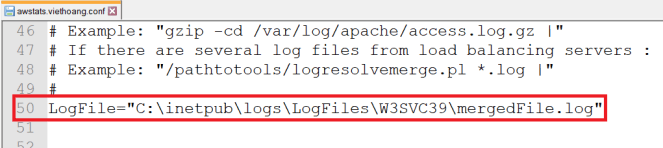

5. change the LogFile value to the full path of our web server log file, for instance: “C:\inetpub\logs\LogFiles\W3SVC39\u_ex200319.log”
   •

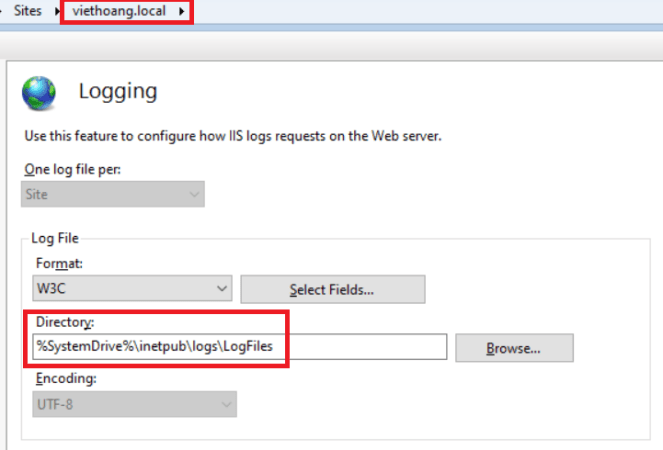

   • Note 1: we can get the correct folder based on the following info
   •

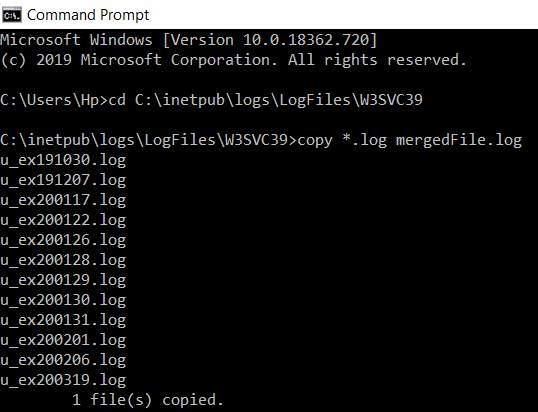

   • Note 2: there are many log files so we should merge them all into one single file, otherwise we will have to process one by one to build statistics database
   •
   •
6. change the LogFormat to 2
   •
7. change the DirIcons parameter to reflect relative path of icon directory, in this case it should be /awstats/icon
   •
8. set the SiteDomain parameter to the main domain name or the intranet web server name used to reach the web site being analyzed
   •
9. okay it should be enough, let’s process the logs now by following this instruction
   • open Command Prompt and change directory to [Sitecore website folder]\awstats\cgi-bin
   • run perl awstats.pl -config=viethoang
   •
   • hopefully, you would see something like this
   •
10. so far so good, let’s view our statistics from a browser
    • navigate to [Sitecore host name]/awstats/cgi-bin/awstats.pl?config=viethoang, you may get the following error HTTP Error 404.3 – Not Found
    •

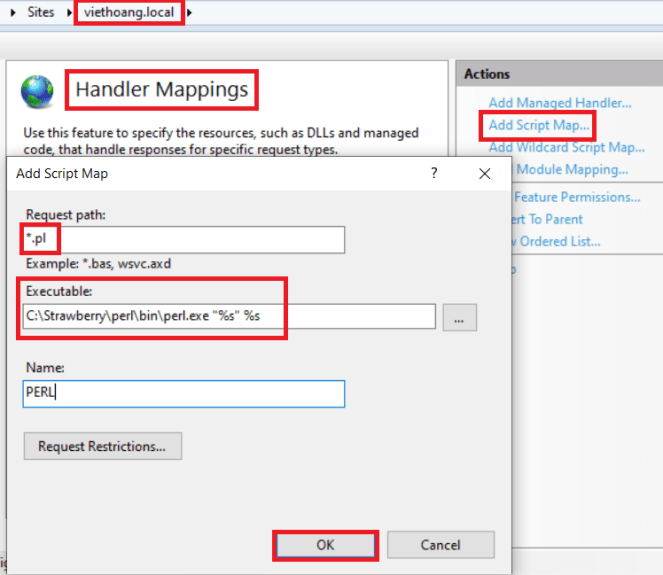

    • as our IIS doesn’t know anything about Perl so we need to add the following Script Map via Handler Mappings feature of IIS
    •
    • Note: you may get the following error HTTP Error 502.2 – Bad Gateway as you miss “%s” %s in Executable field above
    •
    • hopefully, you would see something like this
    •



How to update the statistics

We should open [Sitecore website folder]\awstats\cgi-bin\awstats.viethoang.conf and then set the LogFile value to name pattern for the log files are created by IIS, for instance “C:\inetpub\logs\LogFiles\W3SVC39\u_ex%YY%MM%DD-24.log” so AWStats can process the latest + completed log file (normally, it’s the log file of yesterday)

•

Generally, we have 2 ways to keep the statistics updated:

1. manual update via browser

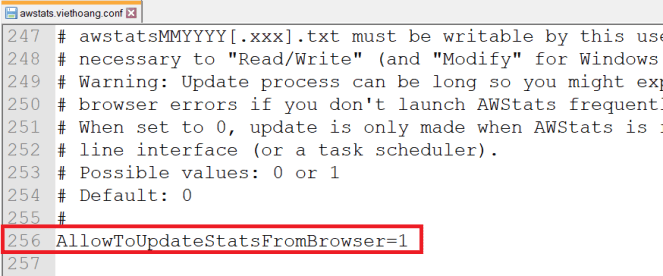

   • set the AllowToUpdateStatsFromBrowser parameter to 1
   •
   • navigate to [Sitecore host name]/awstats/cgi-bin/awstats.pl?config=viethoang you would see Update now link button
   •
   • Note: you may get the following error Permission denied after clicking Update now button
   •
   • in this case, just ensure granting permission to IUSR user to access “C:\inetpub\logs\LogFiles\W3SVC39″ folder
   •

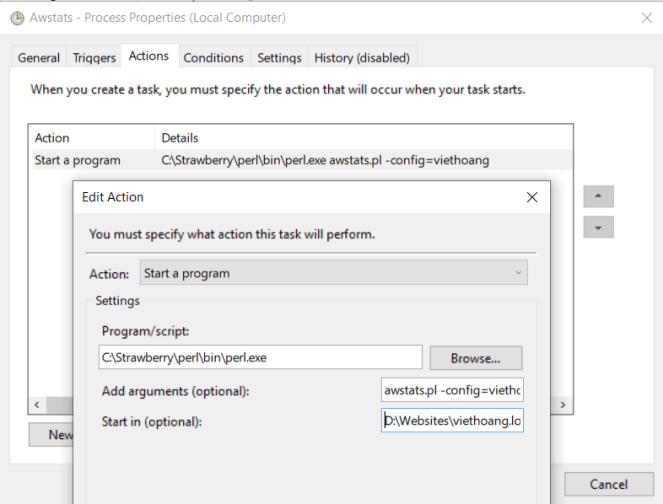

2. create a Windows task scheduler for updating the statistics daily + automatically
   •

How to secure AWStats

We can follow this instruction as medium secured policy so we should open [Sitecore website folder]\awstats\cgi-bin\awstats.viethoang.conf and then edit it:

• set AllowAccessFromWebToAuthenticatedUsersOnly to 1

• This slideshow requires JavaScript.
• update ErrorMessages as well so we will have a more secured and friendly error message

• This slideshow requires JavaScript.

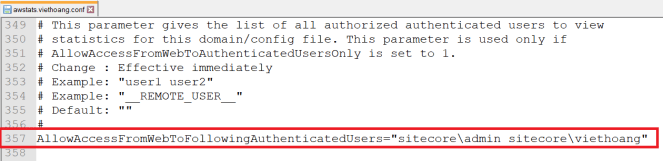

• create a list of authorized users in the AllowAccessFromWebToFollowingAuthenticatedUsers parameter so they can access AWStats
•



Notes

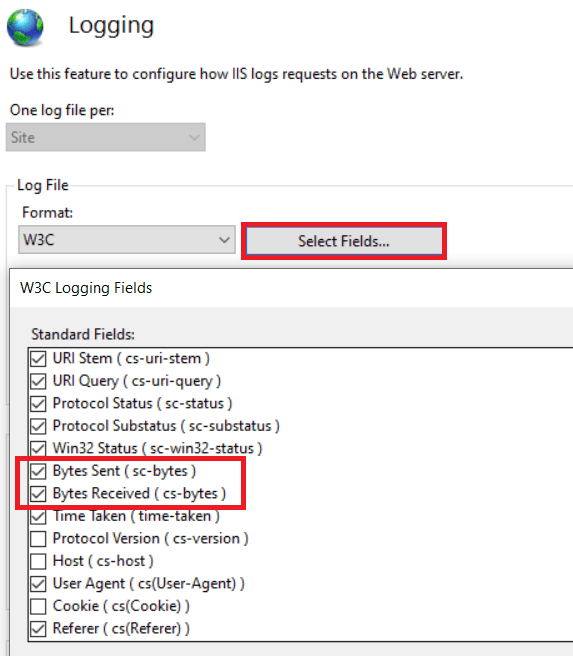

1. ensure that the bandwidth statistics is available by checking Byte Sent and Byte Received logging fields via Logging feature of IIS (note: they might be not checked by default)
   •
   •
2. if we want to have our statistics to be indexed, set MetaRobot to 1
   •
3. if end users must go through proxies / load balancers before accessing the web application, the client IP address field (c-ip by default) in IIS log will show the IP address of network device instead of client’s IP address. So we should use X-Forwarded-For request header to log the IP address of the client, e.g we will add a new field manually to IIS log (Ex: X-Forwarded-For) and then update LogFormat of AWStats to map that new field correctly
   • assume that the fields of our IIS log will be like this
   •
   • we will update LogFormat in our AWStats config file to this
   •

The references

• https://www.damirscorner.com/blog/posts/20150105-HowToConfigureAwstatsForWindowsAndIis.html
• https://devio.wordpress.com/2017/03/07/installing-awstats-on-windows-server-2012/
• https://www.howtogeek.com/50526/setting-up-awstats-on-windows-server-and-iis/



Happy Sitecore Playing!
